Friday,14-April-2017
Lenovo K910 power cable fix
EN
Lenovo K910 - not that bad phone, but the owner of that Chinese marvel grumble that in few days it did charge only from time to time, and when move the power supply cable sometimes it work sometimes not.
From ebay was ordered new ribbon cable and here how it goes..

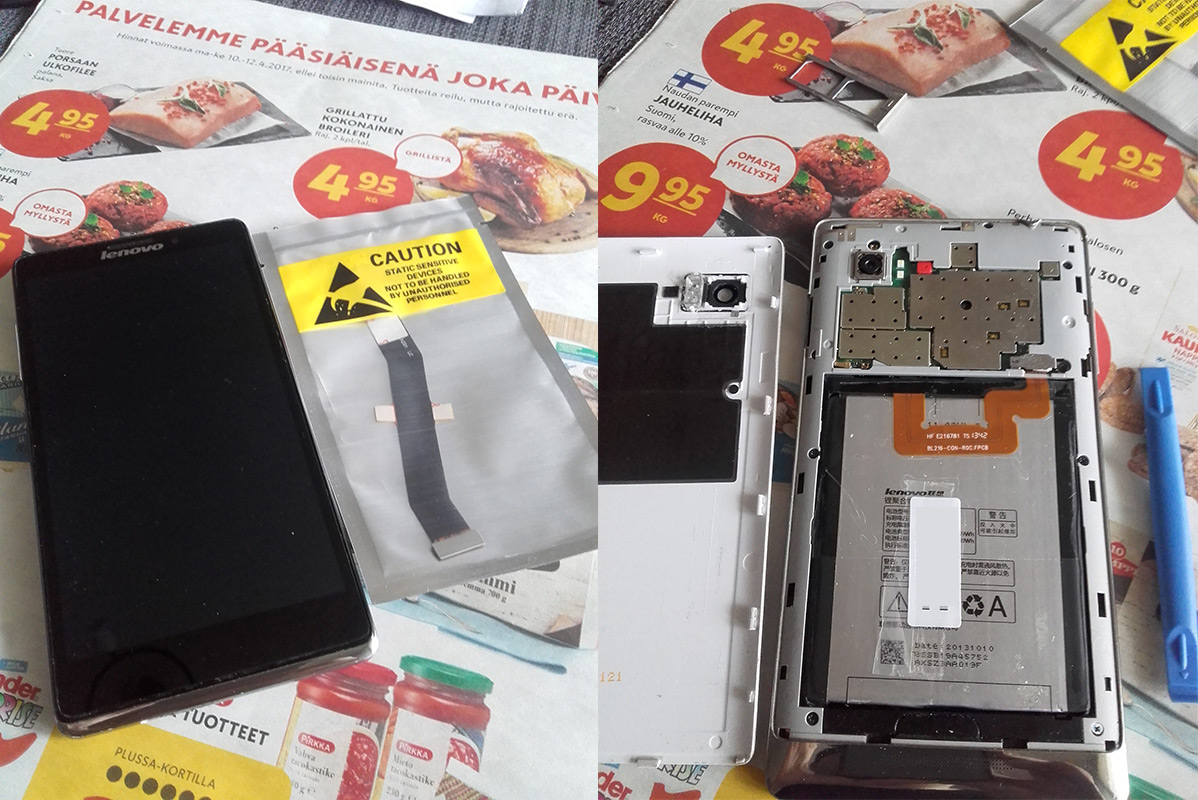

First take 8-10kg hammer and hit straight in the middle of the screen.. Just kidding. Unclip the rear panel covering the battery

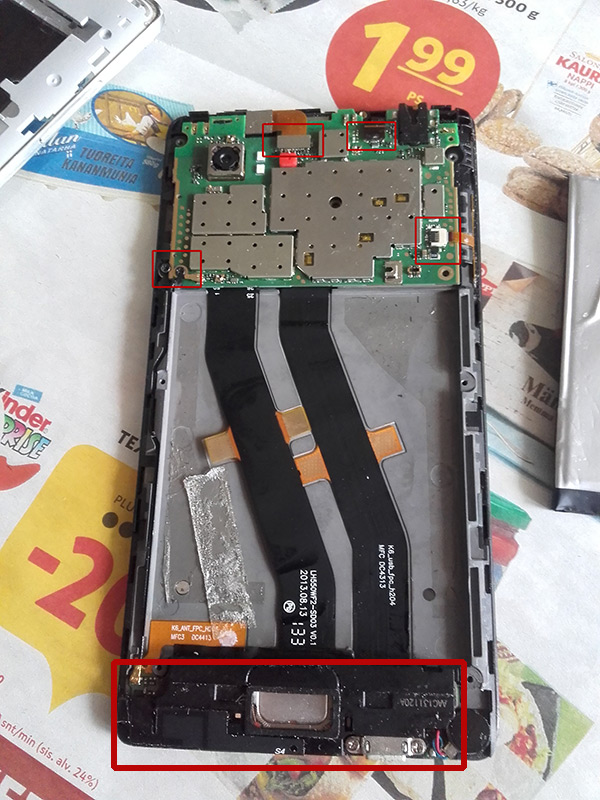

Remove all small screws, and unplug the battery. After that, should be able to unclip the gray/white frame until you get into that state:

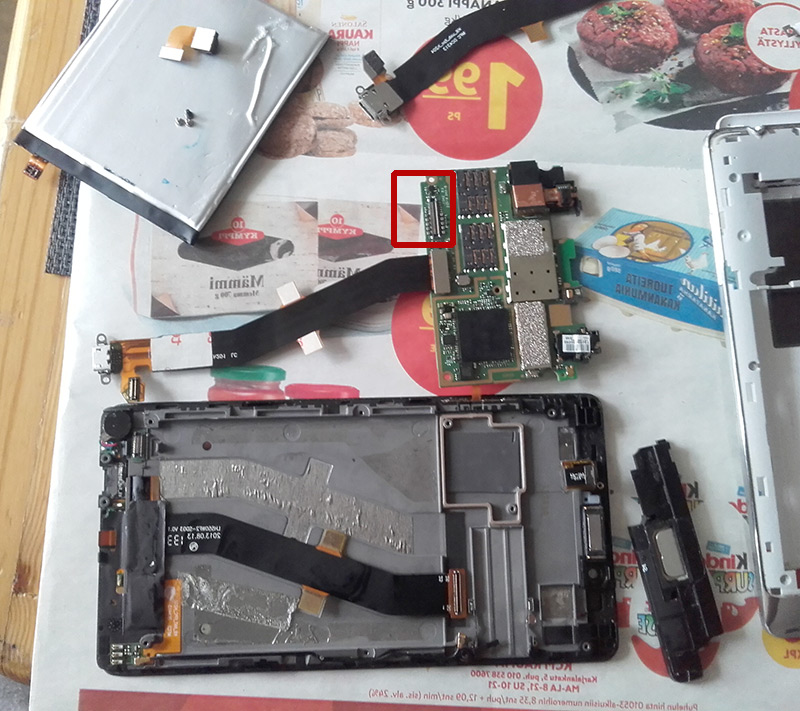

Remove the front camera,, audio plug, that black panel containing the speaker (there is only one clip keeping it on place) and if you wish as last that volume buttons ribbon cable. Honestly, I did not open it. Just carefully twist the board and did not plug it out because is kind of easy to damage it.
Now only replace the cable, 2 screws on the power plug site and here we are:

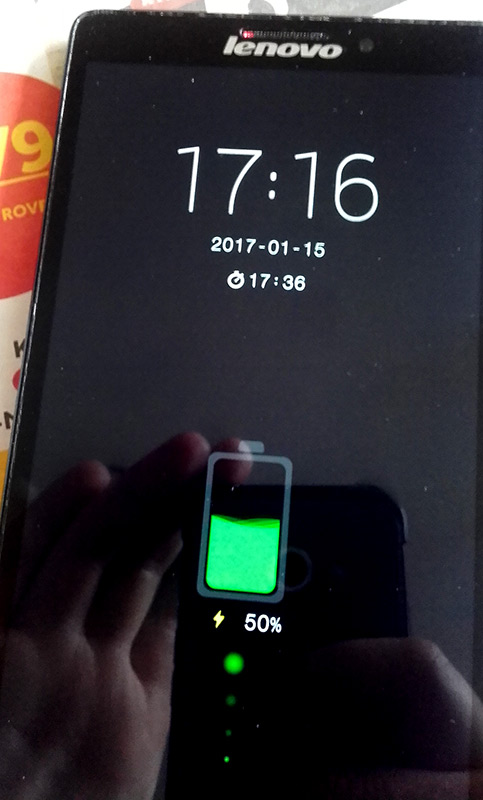

Fit all back into the body but do not put the cover and the gray bezel before test it. In my case it was like that:
Now is good to fit all back. And as small hint - the battery has dualside tape so be careful when pull it out.
Good luck!
