Add dual fan system to 2.5W cnc laser
EN
Hello reader,
In that article wish to show and share one idea of mine for dual fan system (biturbo ha ha) for my cnc 2.5W laser. That is suitable with probably all hobby laser coolers using 30mm fans and aluminium profile 33×33 mm for cooling. So here we go:
- STL files can be downloaded as follow: part A and part B. That are two separate parts that must be 3D printed and glued together.

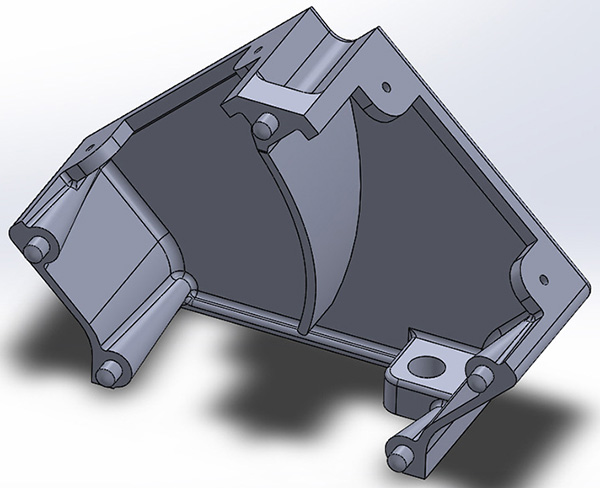

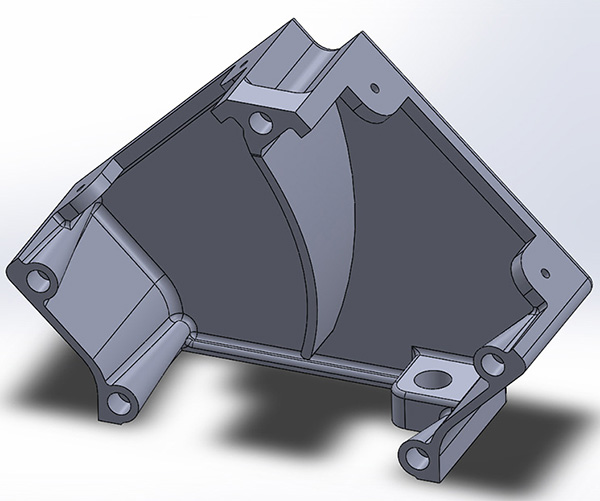

And they look like that:

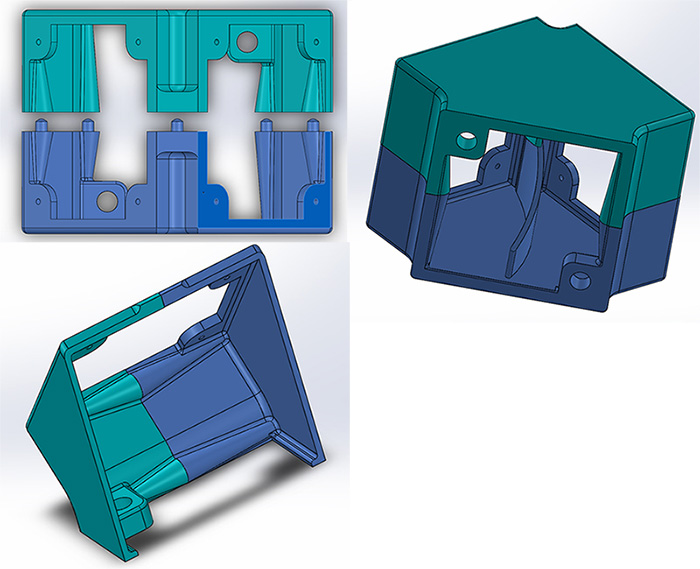

- STL file as assembled part can be downloaded here : 3d full , then you`ll get it similar to that:

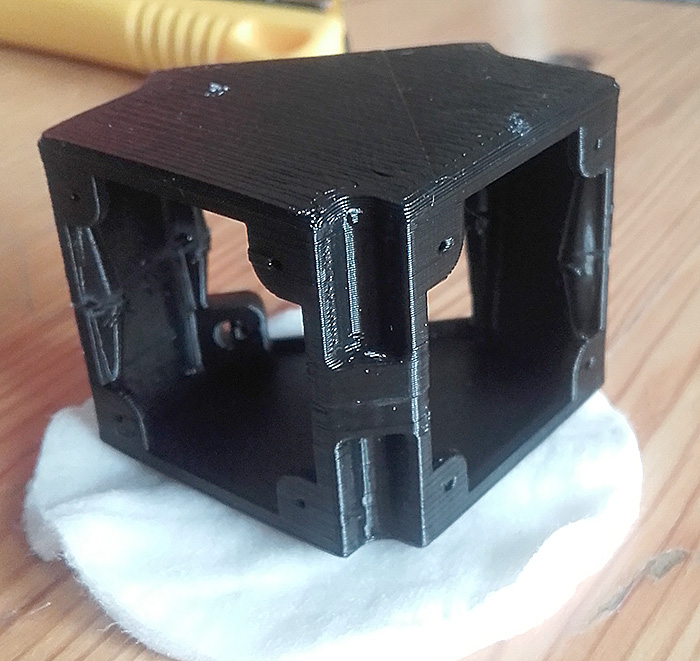

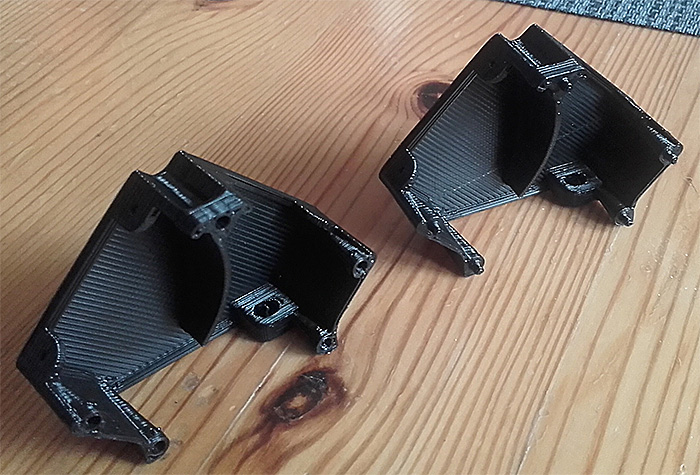

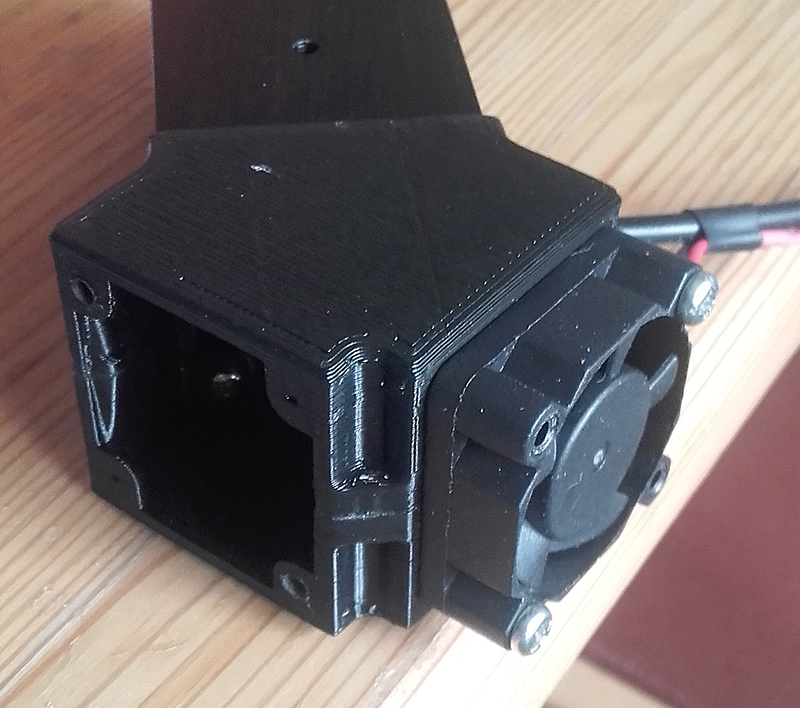

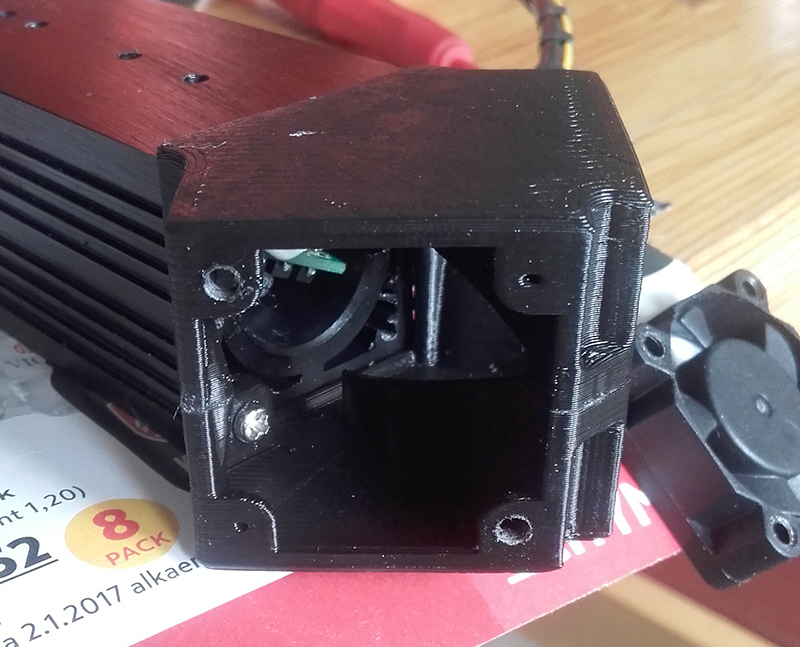

And if you would like to see it in process, here are some shots for you:

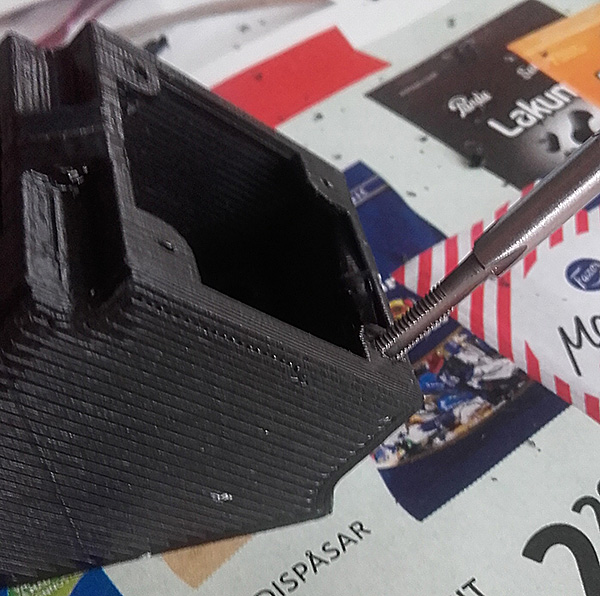

Just to mention, the cooler connecting points are only slightly marked. First my intend was to drill 2mm hole and use screw for wood/plastic, but then just made it M3×0.5 and use appropriate screw for it. Anyway, is your choice. Good luck!
